Precision Extrusion Molds
Tooling for polyamide profiles
Precision begins with the drawing.
Custom extrusion molds are developed from optimized profile drawings, with forming accuracy and stable production as the design priorities.
We review the relationship between profile geometry and mold processing requirements before developing the tooling for your production setup.
Discuss your mold drawing
Mold configuration / 01

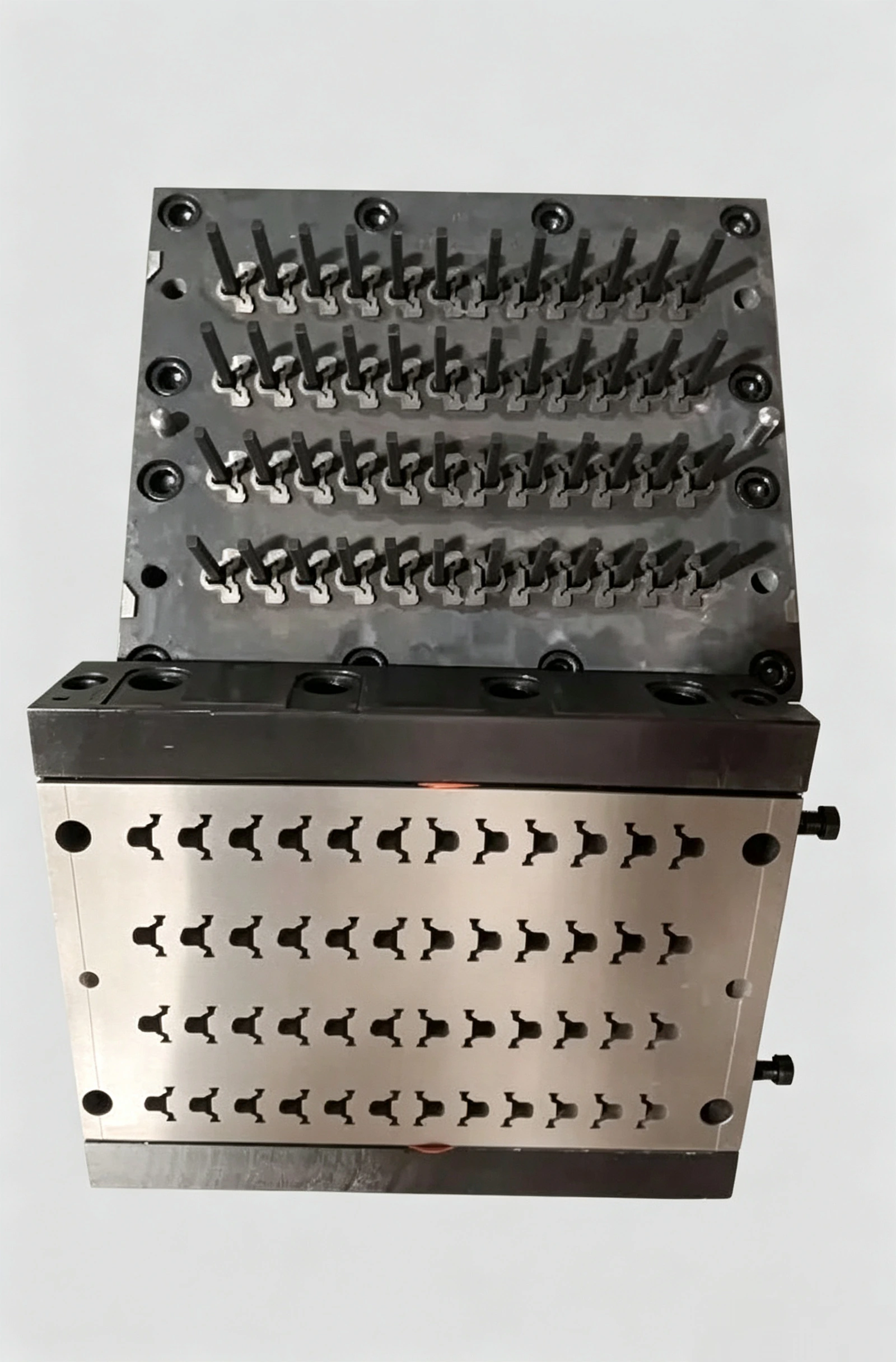

Standard thermal insulation strip molds
A conventional mold set includes the cold mold, hot mold, flow divider, flange, heating tube, water cover and outlet pipe.
Tooling is developed according to the finalized profile drawing and the requirements of the extrusion process.
- Profile drawing review and optimization
- Matching mold components and processing requirements
- Support for forming precision and repeatable production
Mold configuration / 02

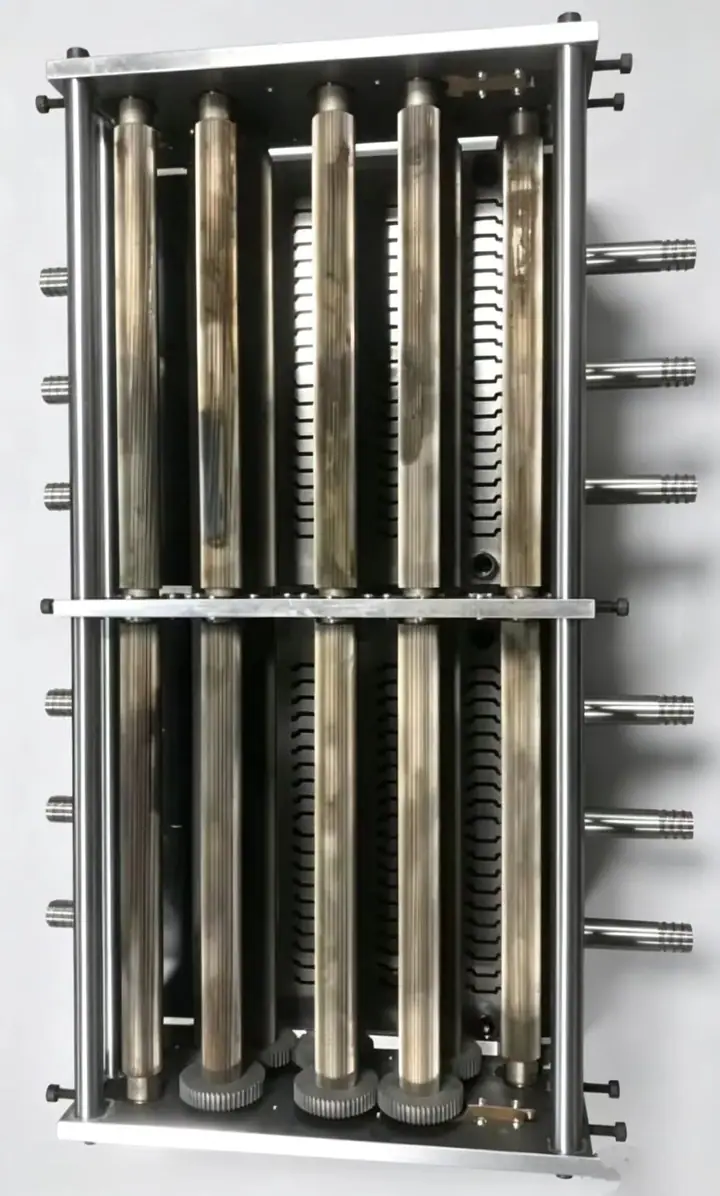

Multi-cavity thermal insulation strip molds
The cavity mold configuration uses core pins alongside the mold assembly. The final tooling arrangement is defined by the profile structure and production requirements.
